In this article we will give an overview of the Resources page and how to utilize it for entitlement discovery. The Resources page provides a list of different resources available within an application. These resources are extracted from an application during the application integration stage.
To navigate to the Resources page follow the below steps:
Select the Resources page under the Entities section.

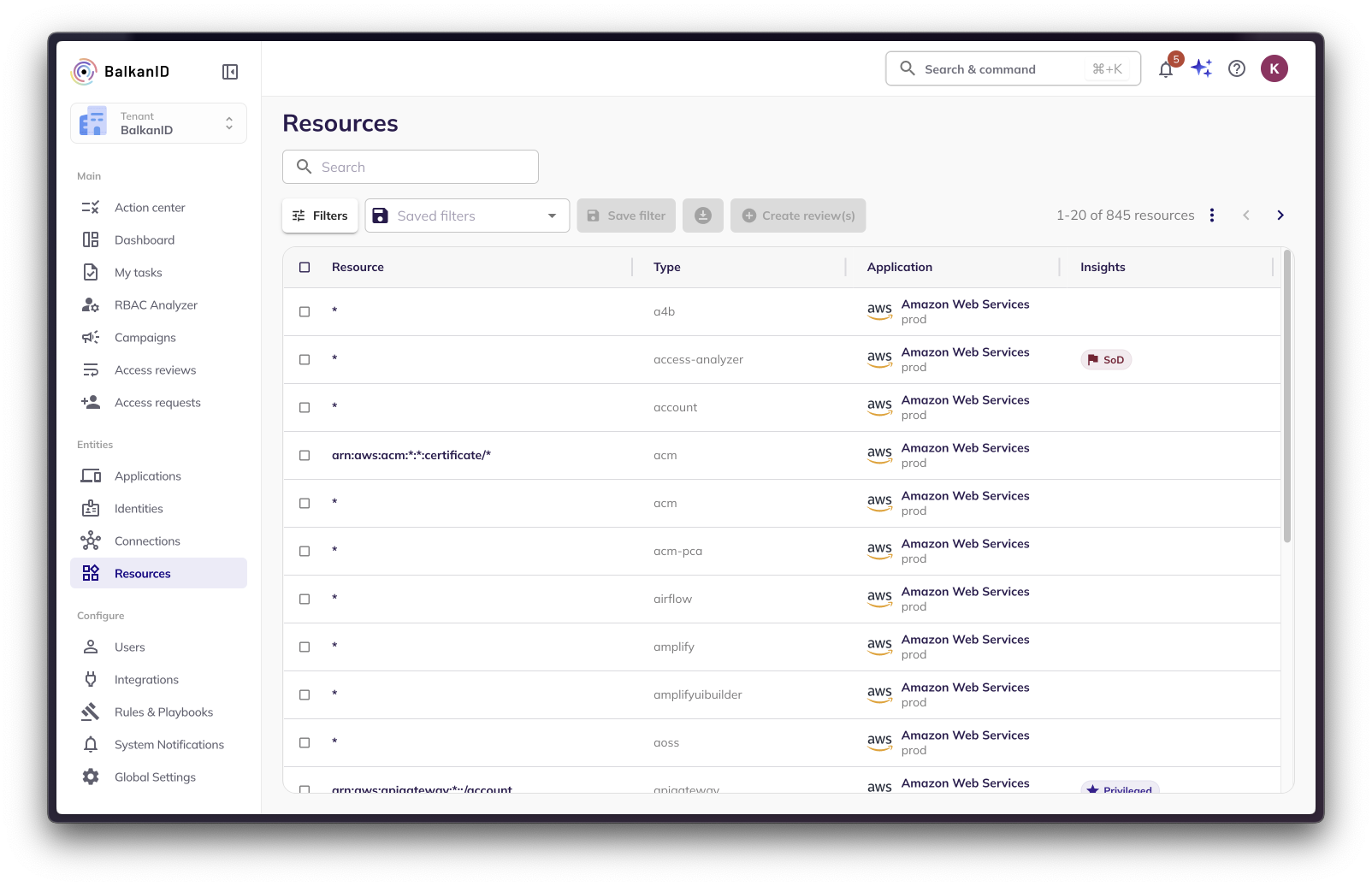

You can view all the resources with respect to the application that belong to your organization from here.
You can use the search box and filters to explore the your organization's resources. The following filter fields are available for this page:
Resource - This field allows you to filter data based on a resource in an application. For example, you can choose to filter arn:aws:apigateway:::/apis/* Resource of type apigateway within AWS.
Resource Type This field filters data based on the type of resources available. For example, you can view all resources that belong to a channel resource type.
Application - This field filters based on the specific Application Integration that you would like to explore. For example, you want to view Azure(Test Environment) data, you can add it as a filter in this field.
Insight Filtering with insights allows you to see which resources have a user with some insights on them. For example, to view the resources which have users marked with an Outlier insight, you can add Outlier as a filter in this field.
Selecting a resource from the list will pull up more detailed information about the identities and entitlements associated with the resource. There are two tabs in this view:

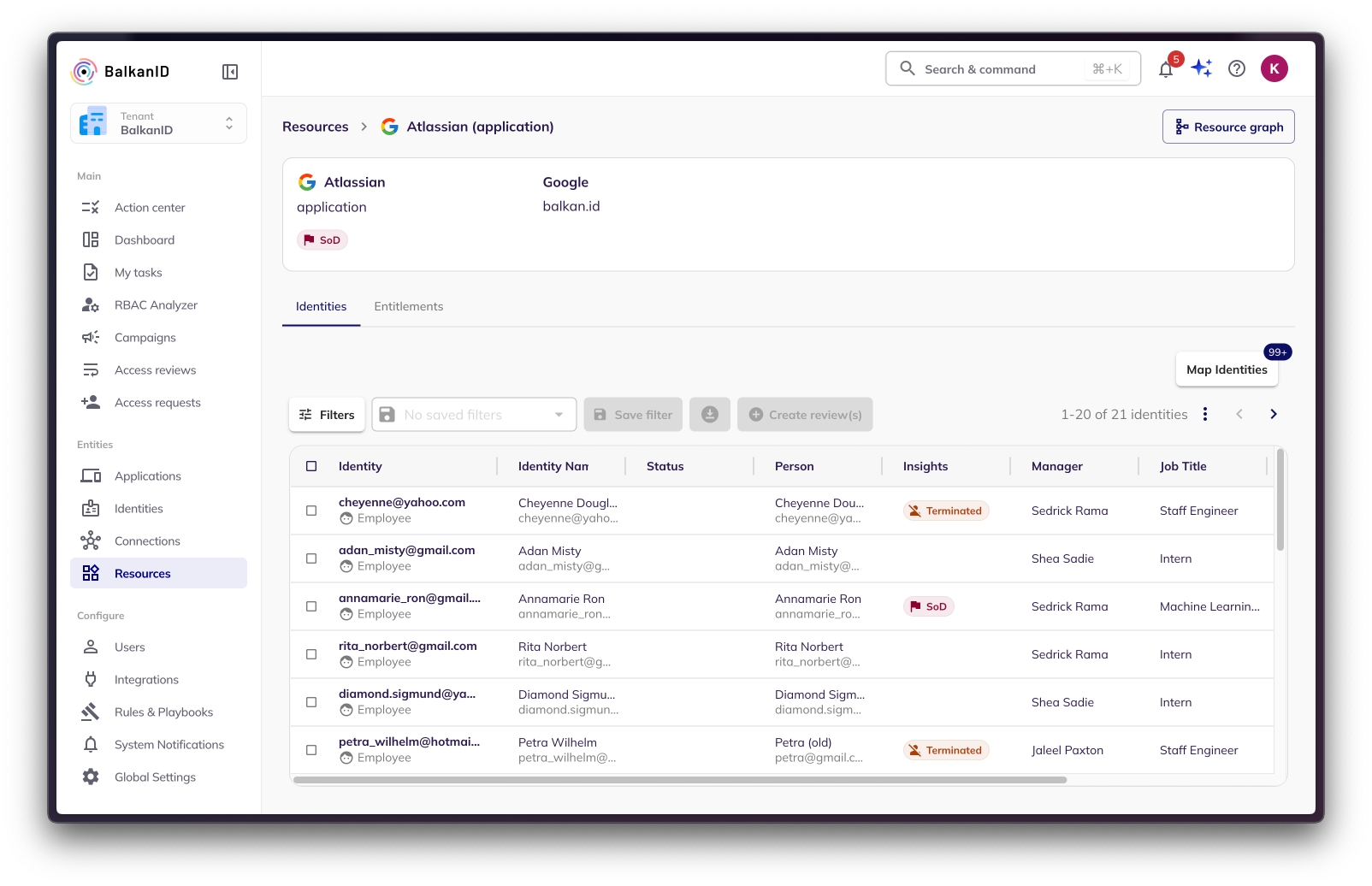

The Identities tab shows a list of all the identities tied to this resource. You can use the search bar or filters menu to quickly find individual identities tied to this resource.

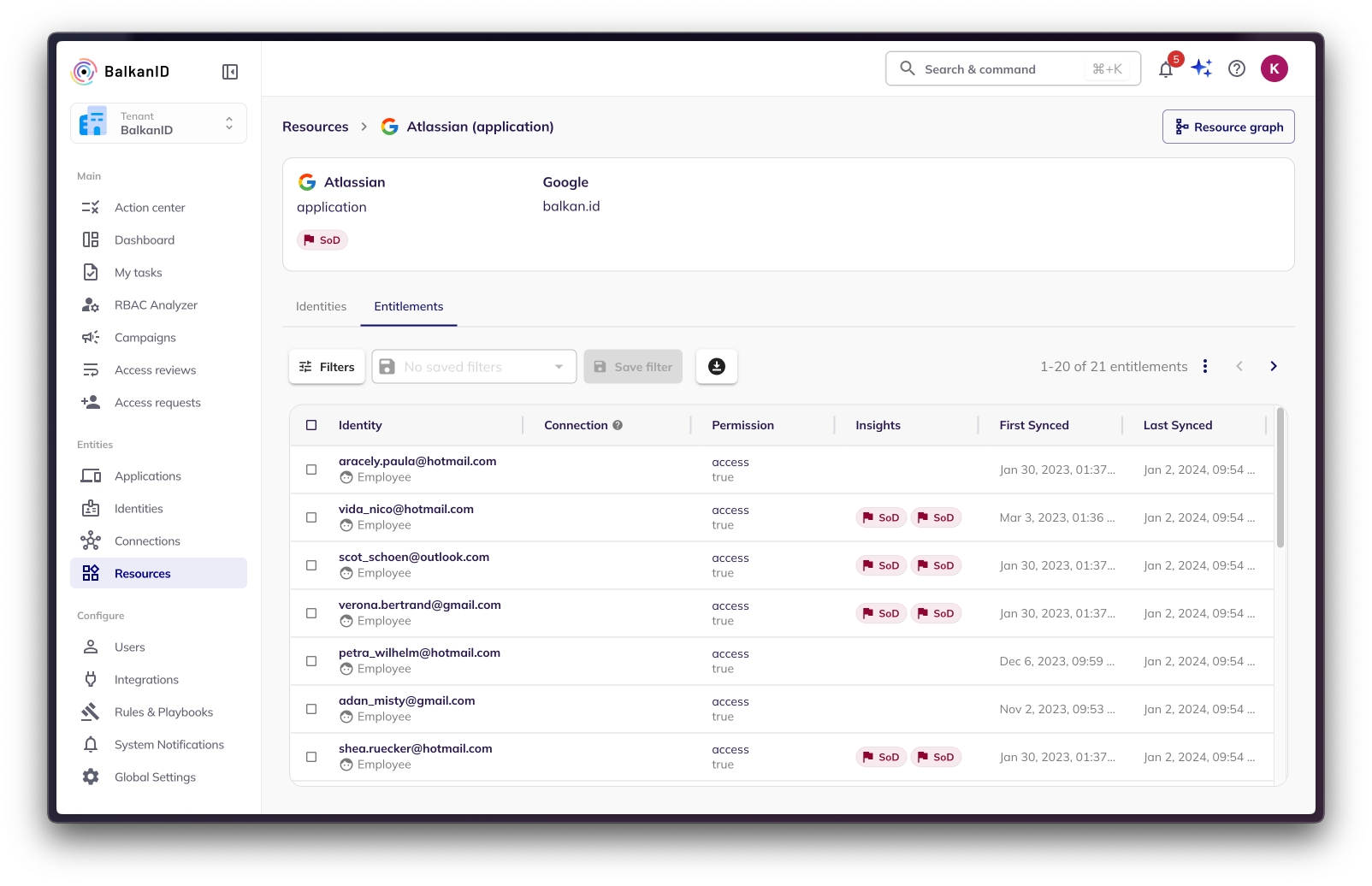

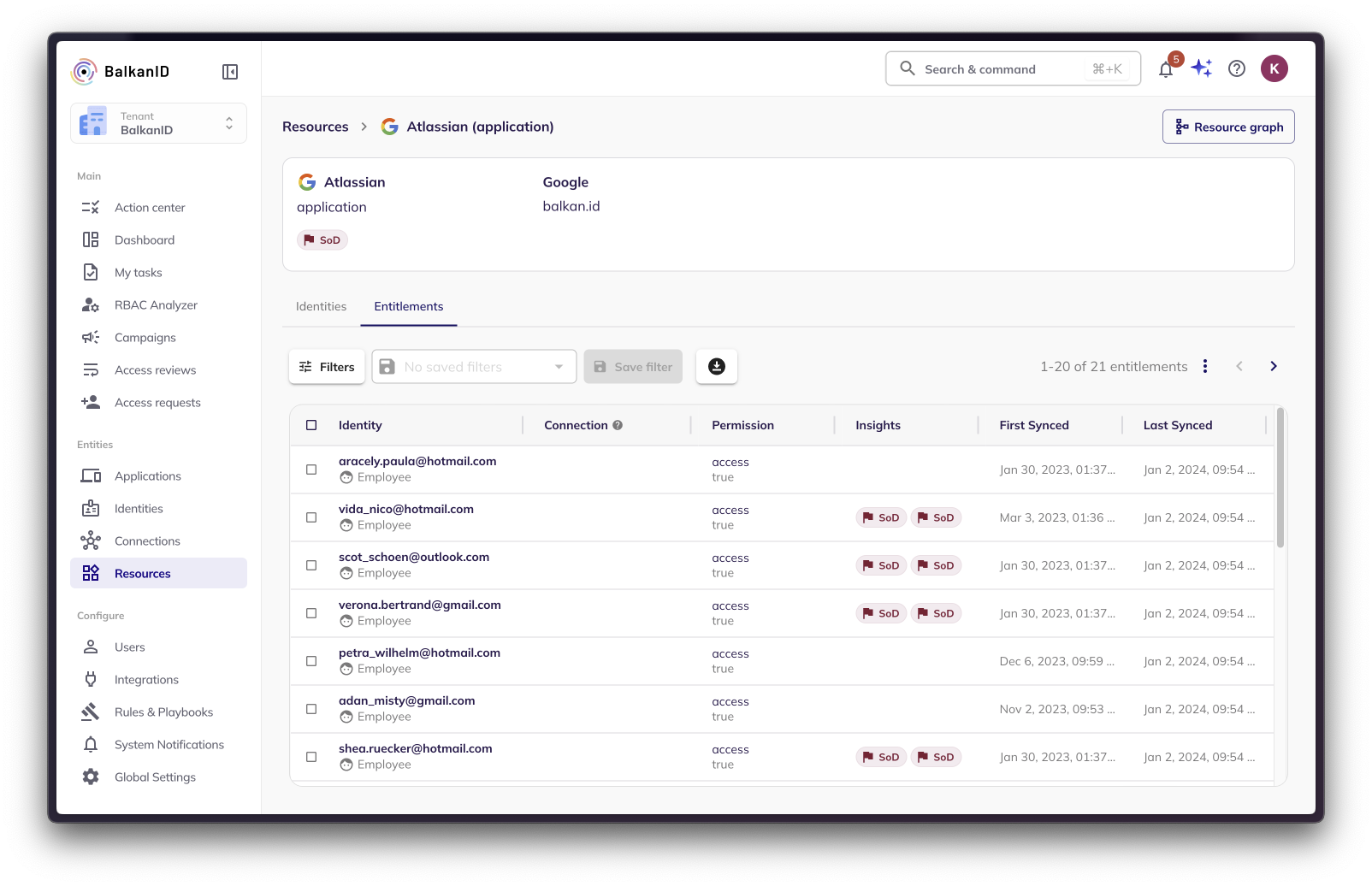

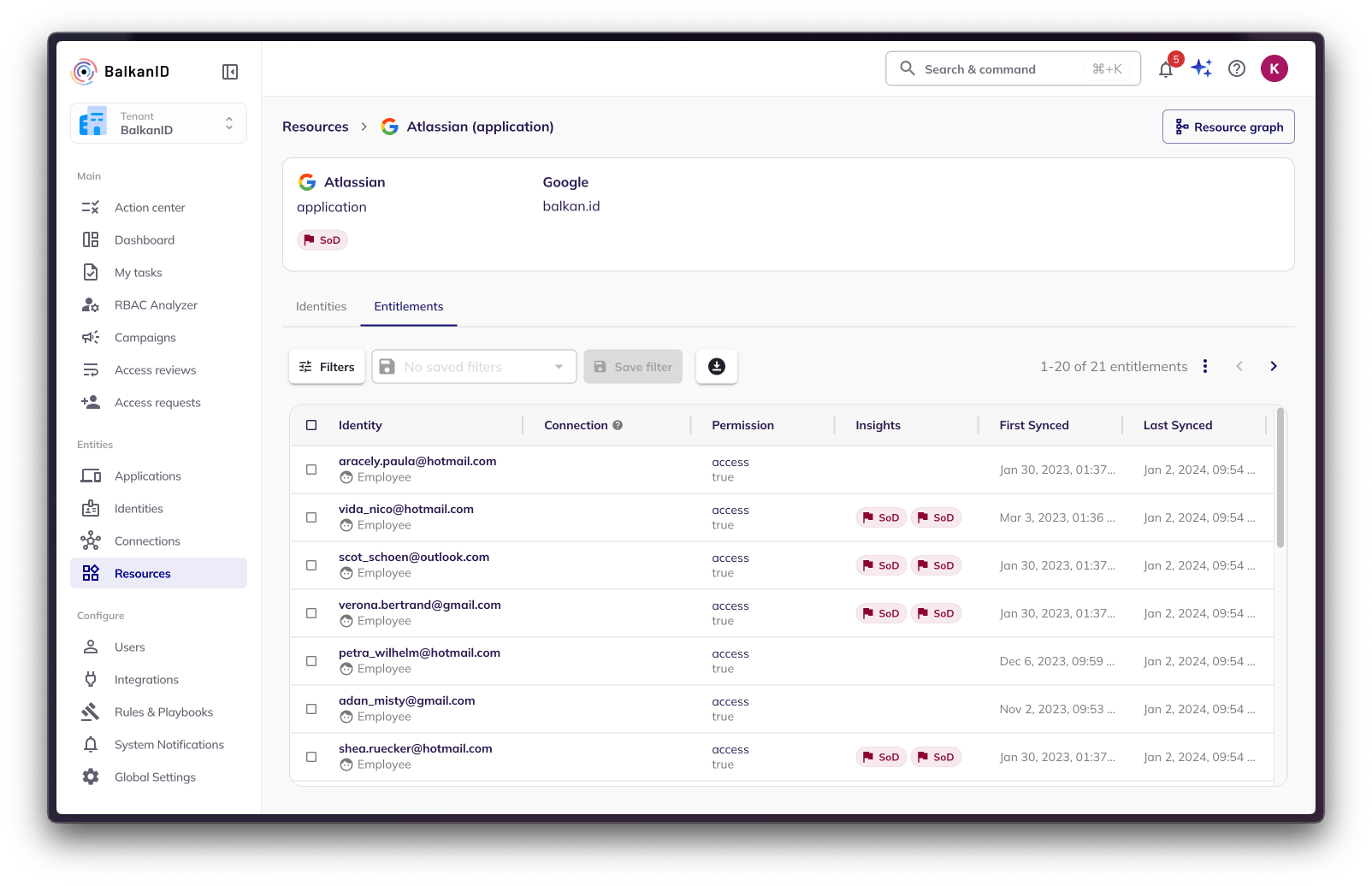

The Entitlements tab shows a list of all the entitlements tied to that resource. You can use the filters menu to quickly sort this list and find individual entitlements.

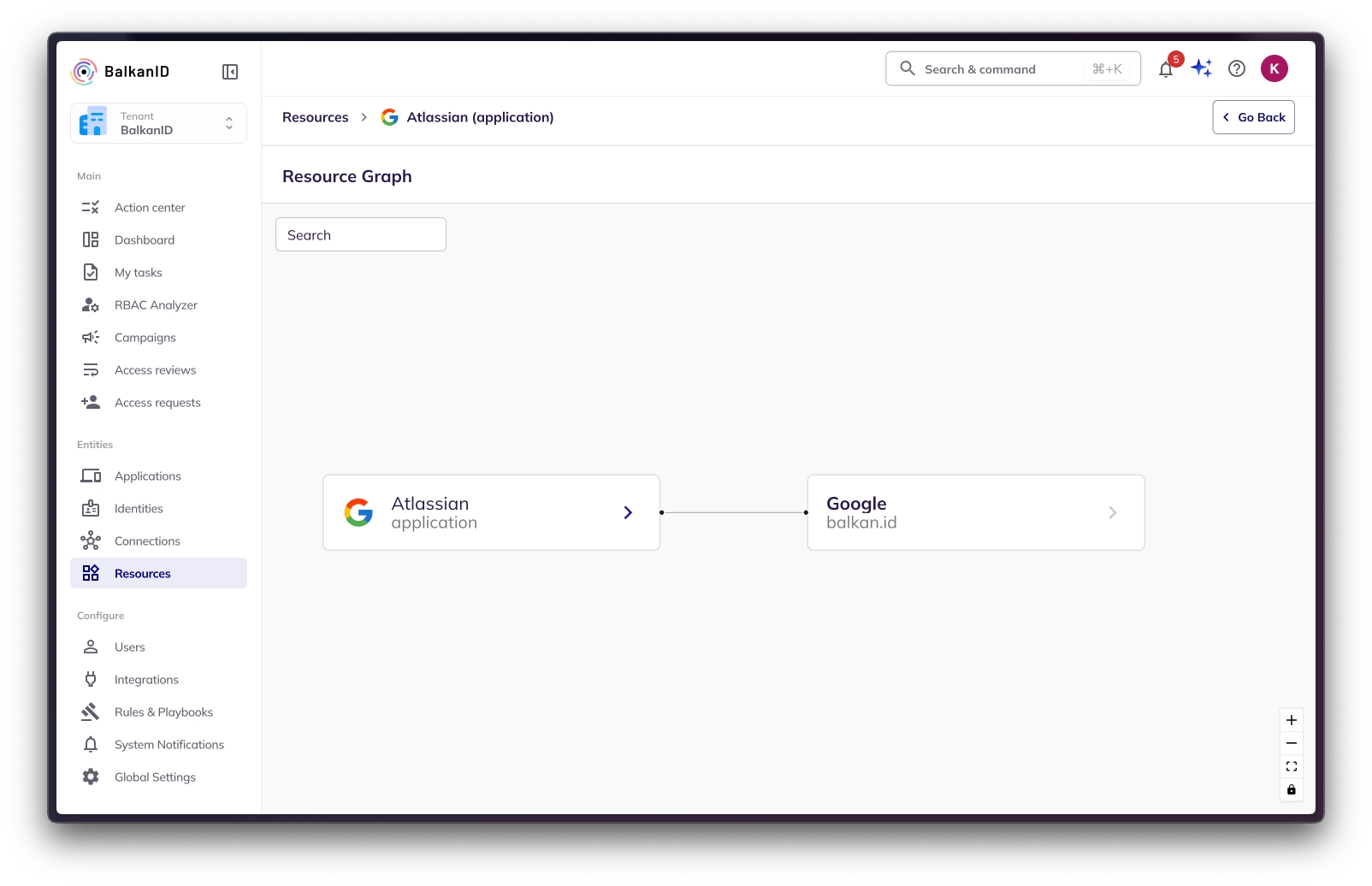

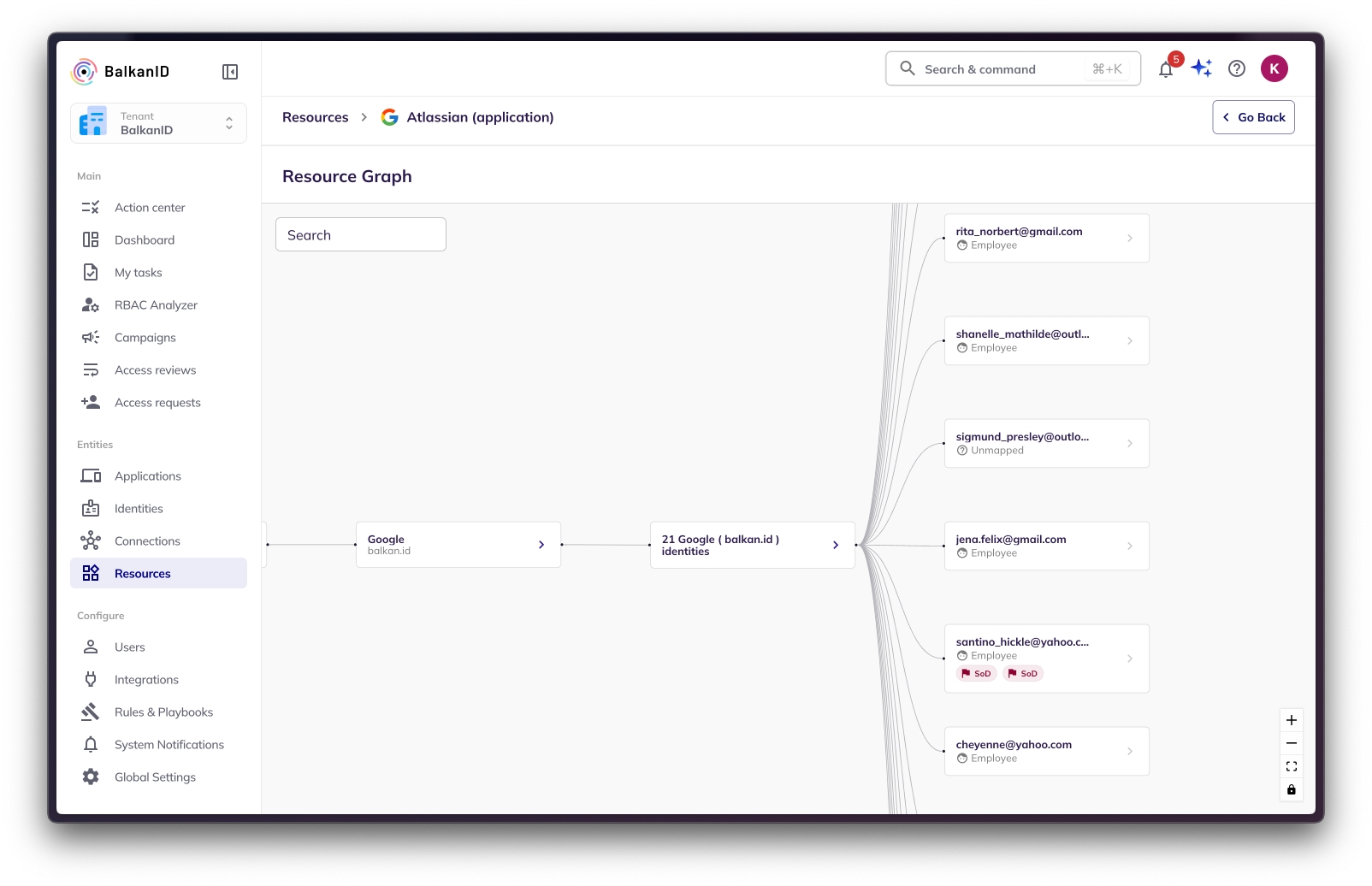

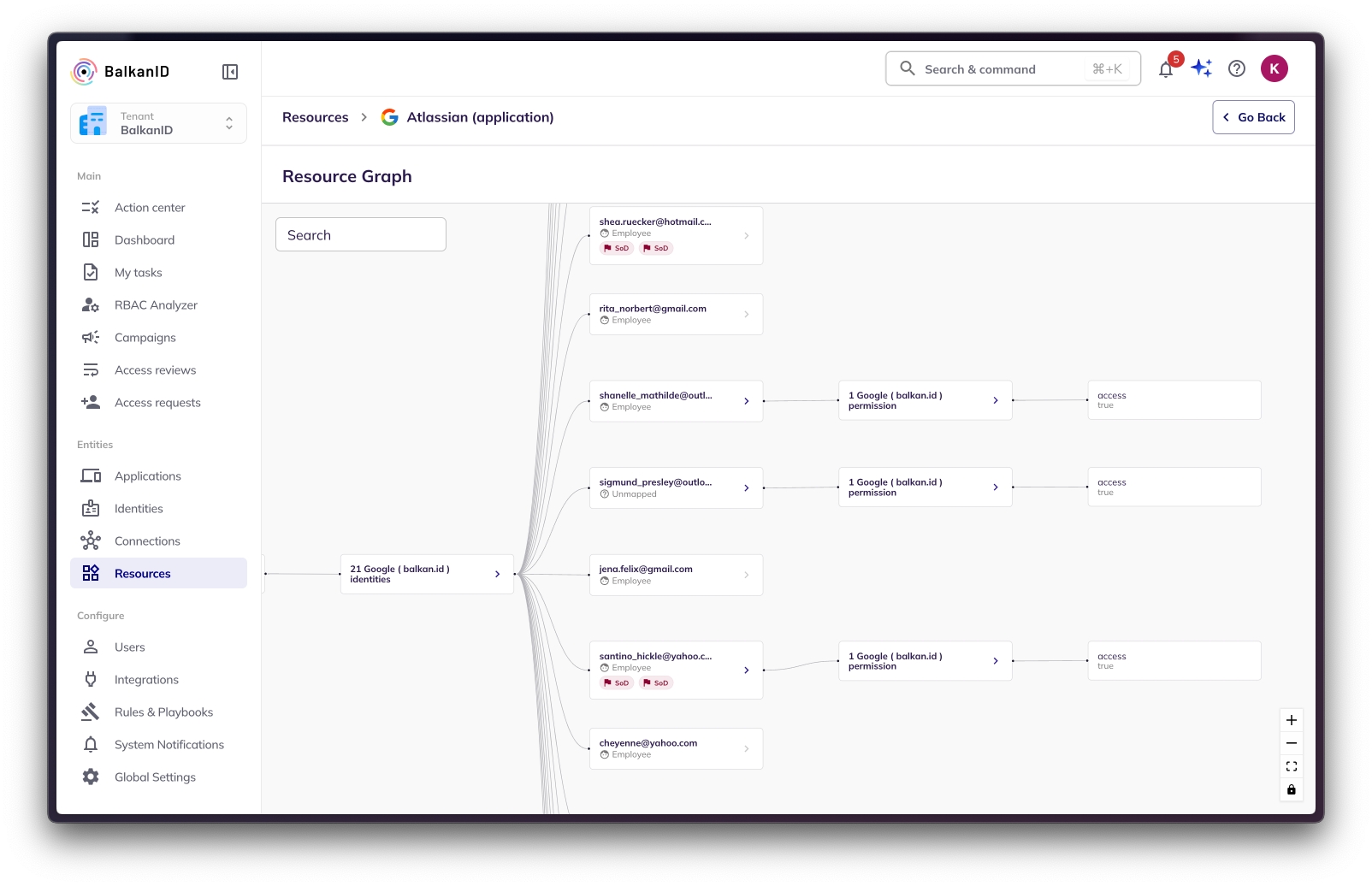

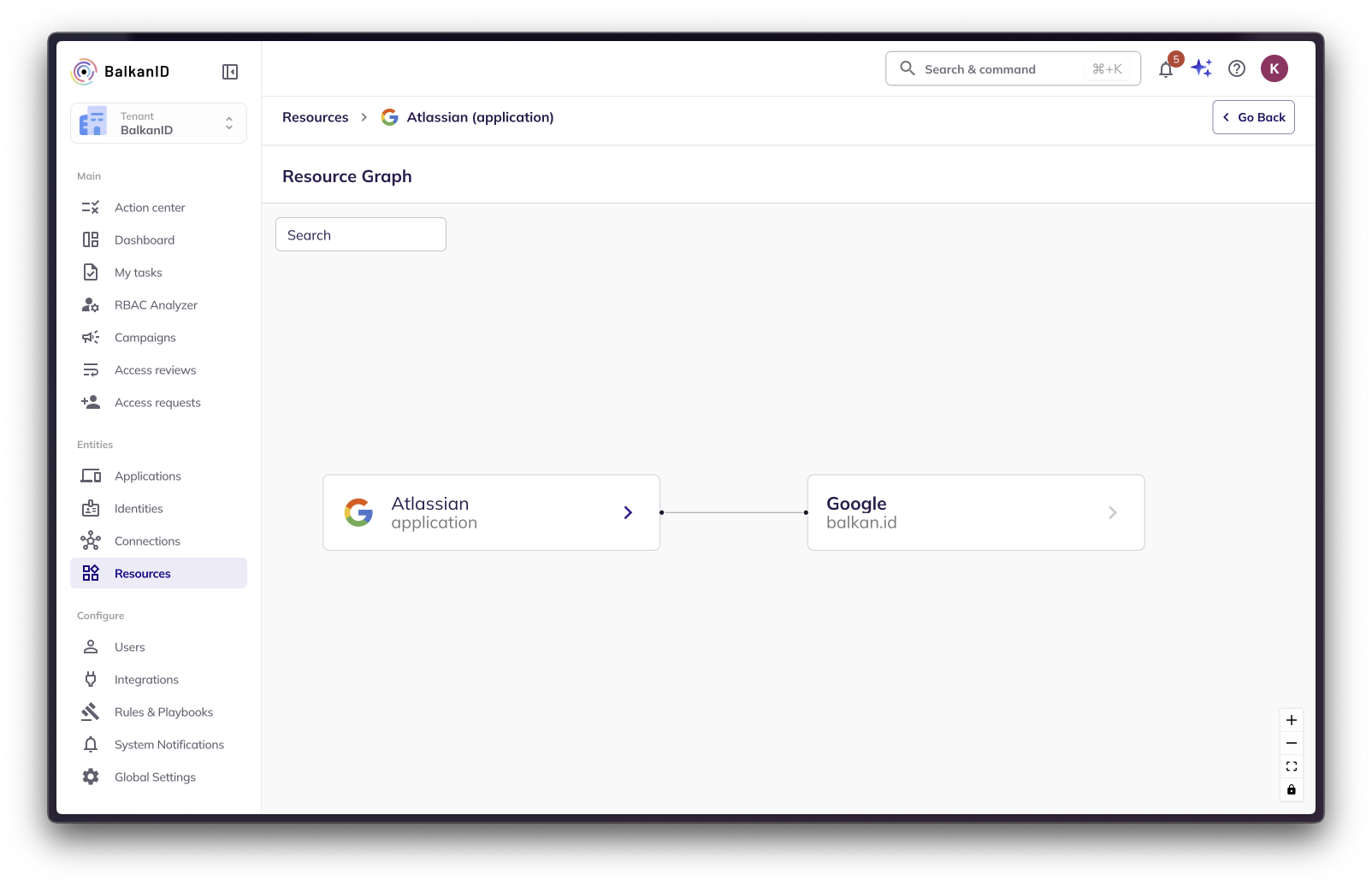

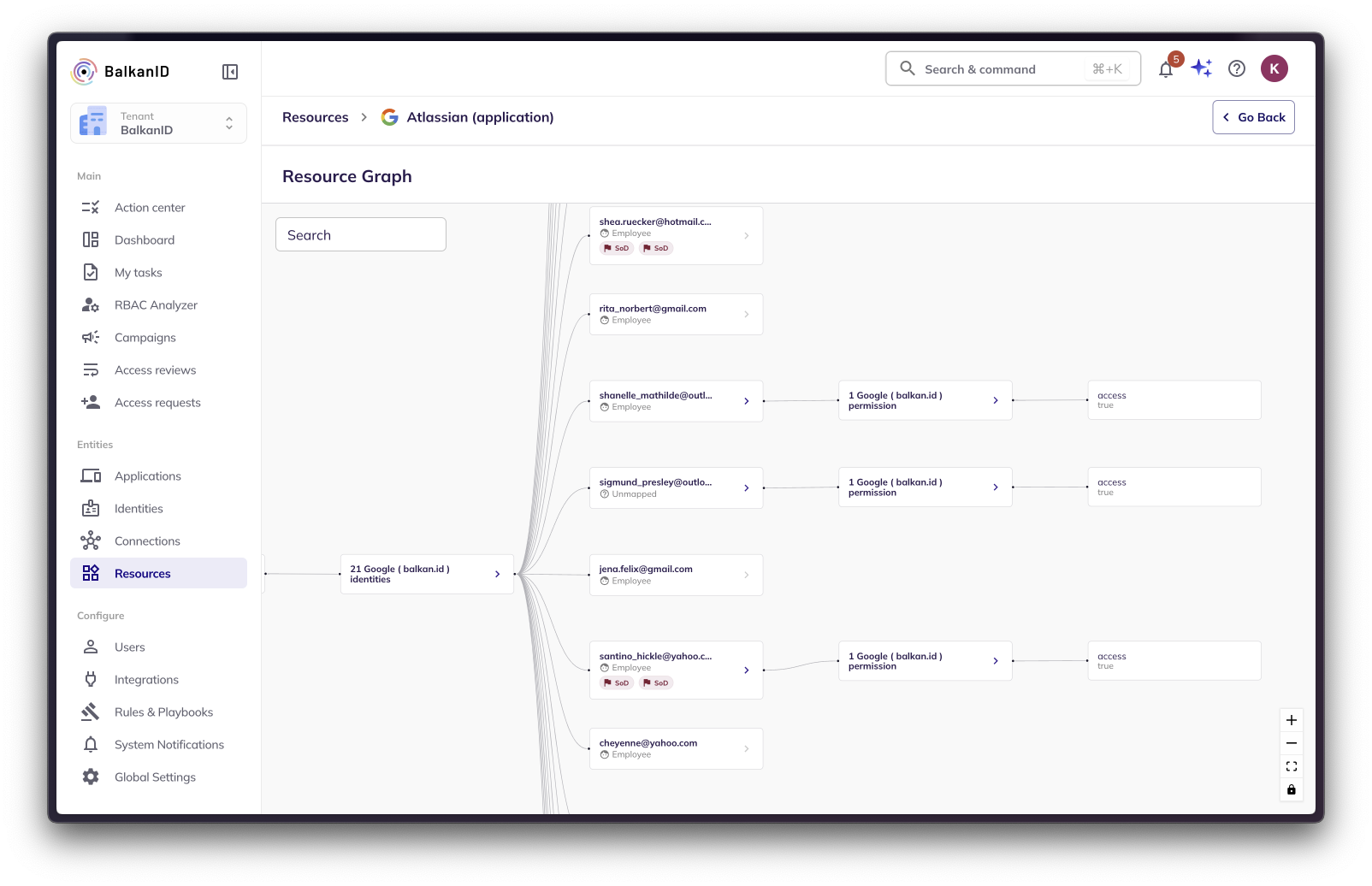

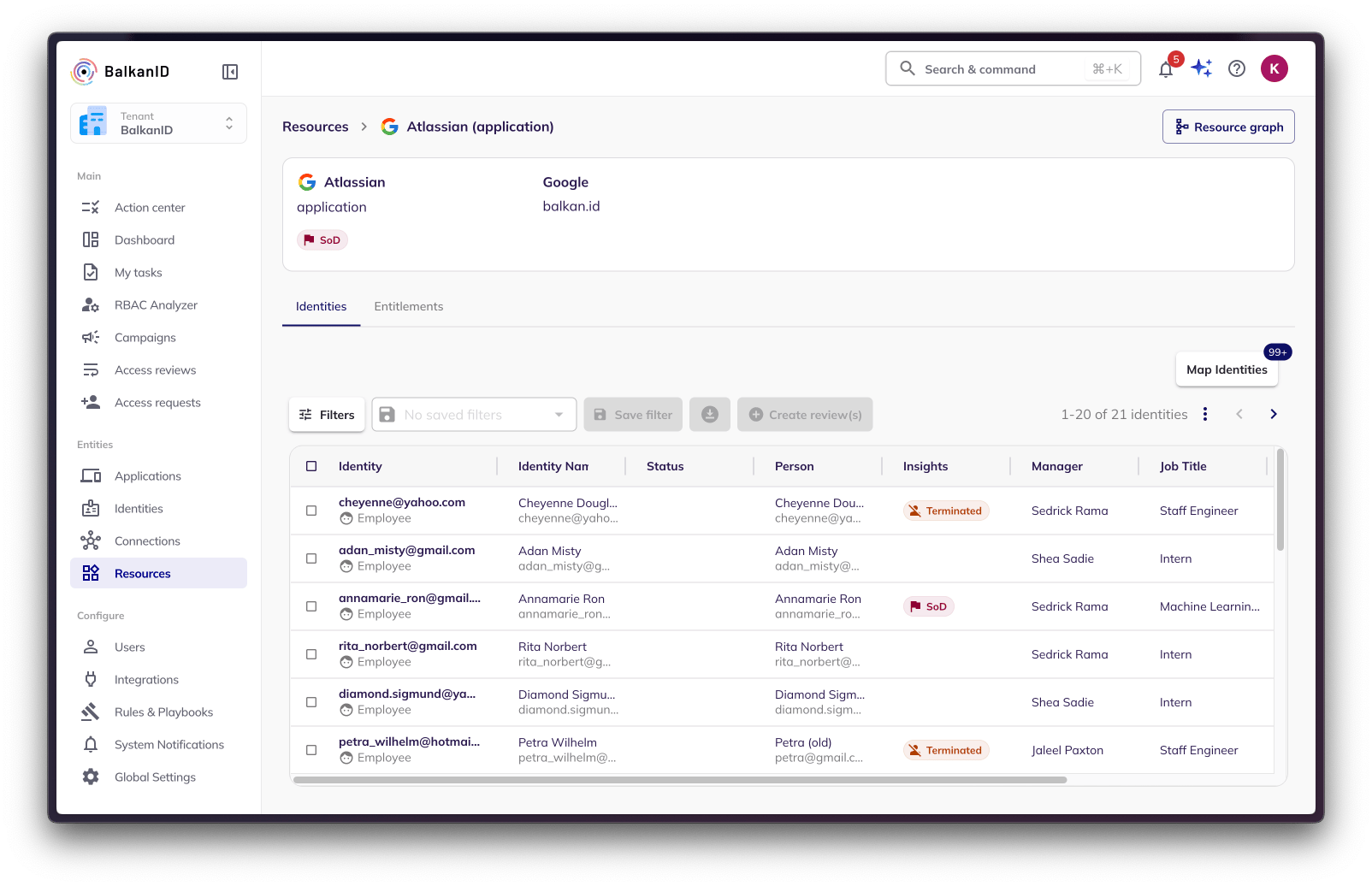

The Resource Graph View on the top right corner of the image above, will allow the user to visualize the resource entity relationships in a manner that helps understand lineage and dependancies. In the example screenshots below, you are able to understand how resources -> application -> identities -> resources/permissions types are related.
Using multiple filter fields together will help you navigate through the data swiftly and will make your time spent on discovering entitlements a lot more productive! Refer to to learn more about filters.
